Project Description

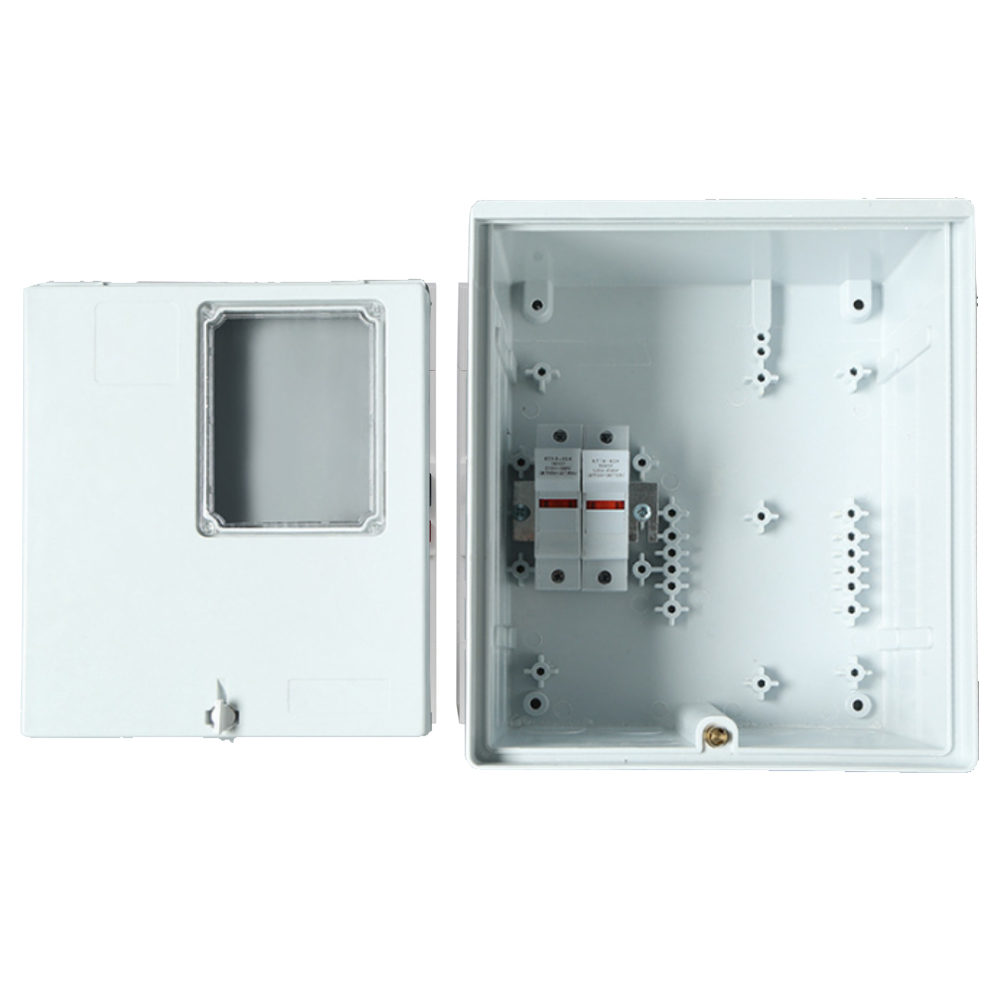

DDSY1598 Polyester box reinforced with corrosion-resistant and UV-resistant glass fibers with Senelec logo and name engraving, equipped with 2P/P+N circuit breakers with AD type fuses, 30 A caliber, Size 14×51 on the phase and Size 14×51 bar for the neutral.
Function&Feature
| Meter box is molded by hot-pressing of glass-fiber reinforced polyester; |
| The materials used can be self-extinguishing at 960 ° C and resistant to heat above 125 ℃ and ultraviolet rays; |
| It is equipped with a window, a reading light of counter. The reading light of the meter will be made of transparent polycarbonate, non-corrosive and indémontable from the outside. The mechanical protection index to be combined with this is IK10. |
| The fitting inserts: will be made of tin-plated brass, tin-plated or stainless steel screws. |
| The access door for the resetting of the circuit-breaker: will be made in injection without any metal parts. It will be articulated in its upper part and will have to ensure a tightness of the assembly thanks to its shape. |
| For protection against solids and liquids, the protection class IP43. |
| In accordance with EN 60695-9-11, NFC 14100, NFC 20030 |
| Installation mode of the enclosures: Fixing on wall or pole by strap. |
| Fixing of meter: Presence of device for fixing various models of single-phase Din Rail or BS type (3 bosses for fixing counter 2 bosses for fixing circuit-breaker or fuse holders) |
Main Parameters
| Item | Description |
|---|---|
| Material | Glass fiber reinforced polyester |
| Open/close | A sealed triangle |
| Entries/exits | With cable gland, 4 inputs / outputs sections 70 mm ² |
| Capacity | Suitable for the material included; the grip to the pole should be as small as possible to prevent tearing. |
| Degree of protection | IP43 |
| Accessoires | for fixing the counters and the modular distributor |
| Fastening system | 3 bosses for fixing counter; 2 bosses for circuit breaker or fuse holders mounting |
| Dimension | 291.2mm X 253.6mm X 159.5mm |
