Project Description
I. General Introduction

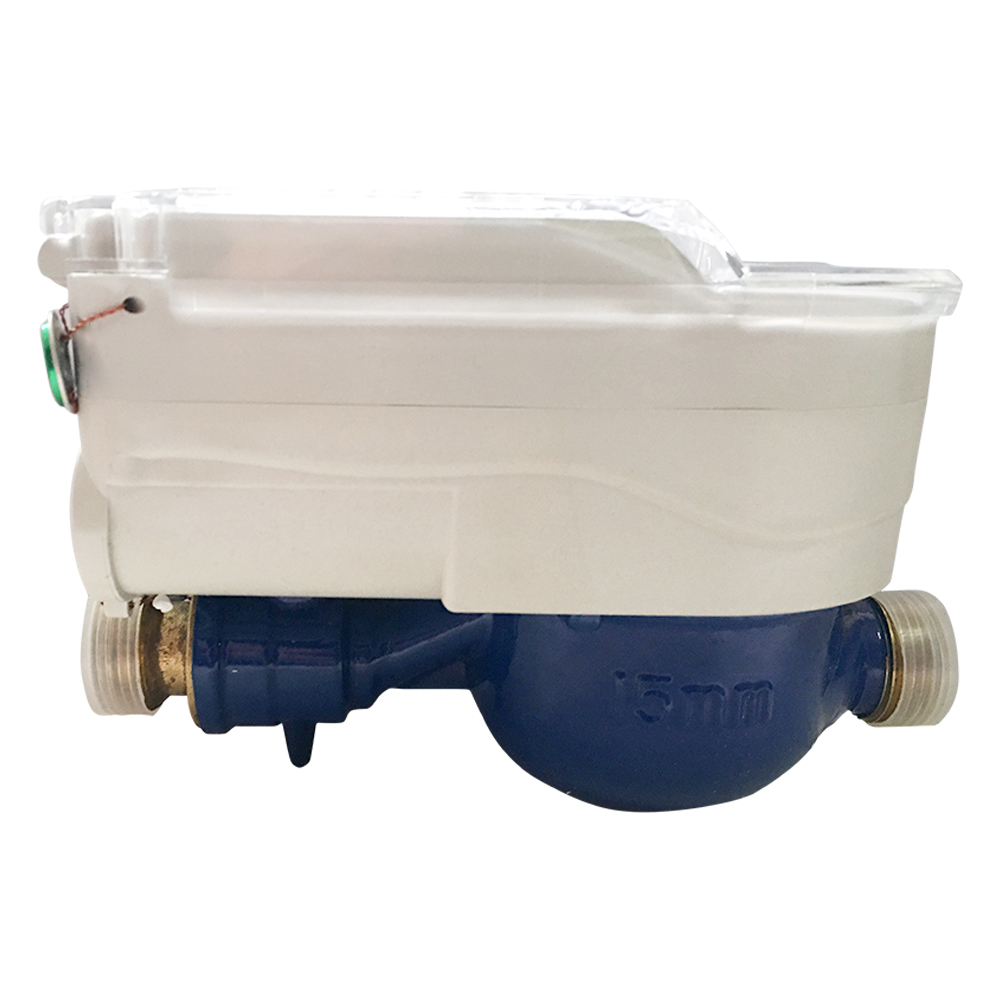

ISW1598 STS Integrated Keypad Prepaid Water Meter adopts STS encrption protocol. In this way, it realizes the prepayment function by controlled electronic valve. With keypad prepaid water meter and AMI system, water utility can avoid the difficulties and respective human&resources to collect the bill from residents. Therefore, the residents can easily purchase water amount at water vending point. After that, customer comes back to load 20 digits charging TOKEN via keypad. On another hand, customer can charge credit to water meter by remotely topping up function via data concentrator and AMI system. By the role of data concentrator, AMI system and water meter can communicate with each other in double way.
Function&Feature
| Comply with Directive 2014/32/EU, ISO4064-2014, OMIL R-49:2013(E)& EN14154. |
| Wet dial or dry dial register for water meter is selectable. |
| Prepayment and post-paid mode is switchable. |
| Low credit warning is programmable. |
| Charging water amount by 20-digit TOKEN from POS point or direct charging from vending system. |
| Anti-return valve to be against reverse-flow. |
| RF Lora communication: Wireless communication operation frequency band is 433MHz, which will be adjustable as per client’s requirement. |
| Optional with CIU, supports to match freely with different water meters |
| Low battery detection: water meter will detect battery capacity when valve opens or closes. |
| Valve can be controlled by HHU or water utility’s central vending system |
Main Parameters
| Item | Description |
|---|---|
| Standards | Directive 2014/32/EU, ISO4064-2014, OMIL R-49:2013(E)& EN14154 |
| Temperature level | Cold water meter: T30(0.1℃to 30℃)
Hot water meter: T30(0.1℃to 30℃) |
| Dial type | Dry or wet dial type as per requirement |
| Accuracy | Class B |
| Level of EMC | E1 |
| Level of upstream flow field sensitivity | U10 |
| Level of downstream flow field sensitivity | U5 |
| Dimension | DN15: 190x99x165mm
DN20：190x99x165mm DN25：260x103x225mm |
| Connecting | DN15: G3/4B
DN20: G1B DN15: G5/4B |
| Q3/Q1 | DN15: 80, 100 or 160
DN20: 80, 100 or 160 DN25: 80, 100 or 160 |
| Life span | 10 years |
| Relative humidity | 0~95% |
| Protection Index | IP68 |
